Compatibility
Printers & Hot ends



What versions / sizes are The Olsson Ruby available in?

The Olsson Ruby
The classic version, compatible with a wide range of printers with excellent performance, wear-resistance and reliability.

1.75mm filament / 0.4 diameter
2.85mm filament / 0.4 diameter
1.75mm filament / 0.6 diameter
2.85mm filament / 0.6 diameter
1.75mm filament / 0.8 diameter
2.85mm filament / 0.8 diameter

The Olsson Ruby MK8
The MK8 version is suitable for printers that uses ”MK8-style” nozzles, including printers from makerbot.

1.75mm filament / 0.4 diameter MK8
1.75mm filament / 0.6 diameter MK8
1.75mm filament / 0.8 diameter MK8

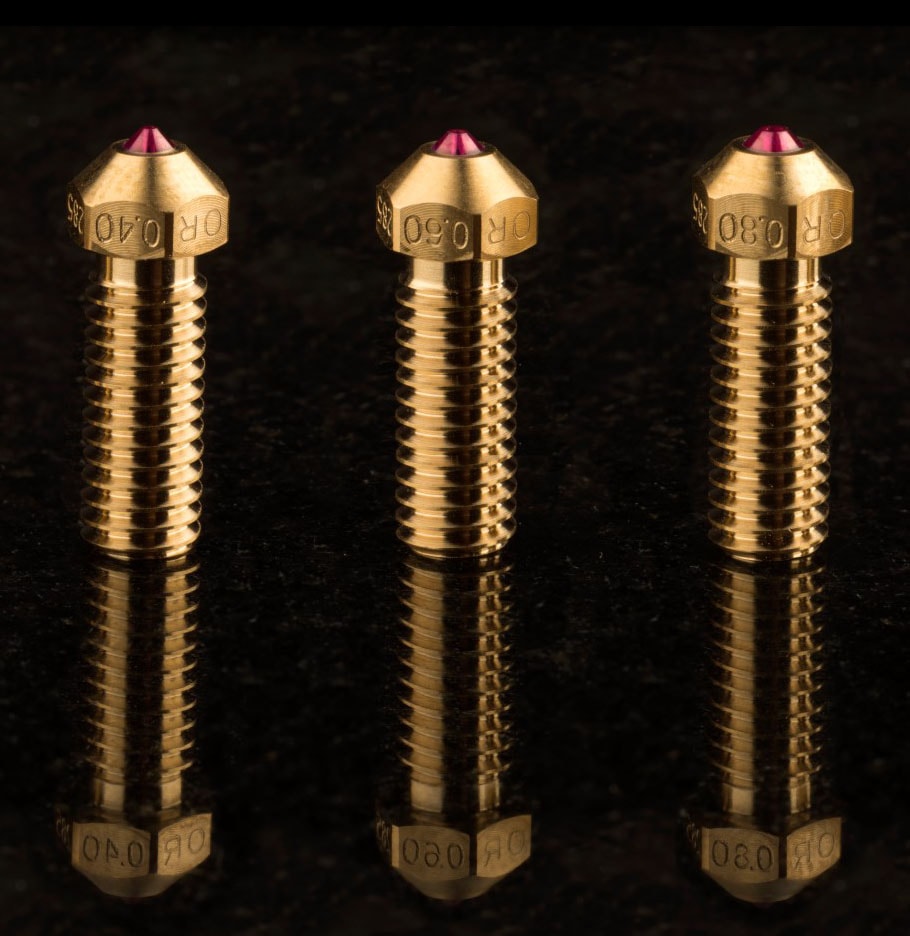

The Olsson Ruby High Output (HO)
The High Output version features a longer melt zone which will give even higher throughput/speed and reduce the time needed for printing large objects in combination with compatible hot ends, while retaining wear-resistance and reliability.

1.75mm filament / 0.4 diameter HO
2.85mm filament / 0.4 diameter HO
1.75mm filament / 0.6 diameter HO
2.85mm filament / 0.6 diameter HO
1.75mm filament / 0.8 diameter HO
2.85mm filament / 0.8 diameter HO

The Olsson Ruby High Temp (HT)
The same dimensions as the classic version, compatible with a wide range of printers, but made from a high performance copper alloy with a non stick surface coating and a max operating temperature of 500°C.

1.75mm filament / 0.4 diameter
1.75mm filament / 0.6 diameter
1.75mm filament / 0.8 diameter

To find out what version that will fit your hotend/printer,
please see our Compatibility list below

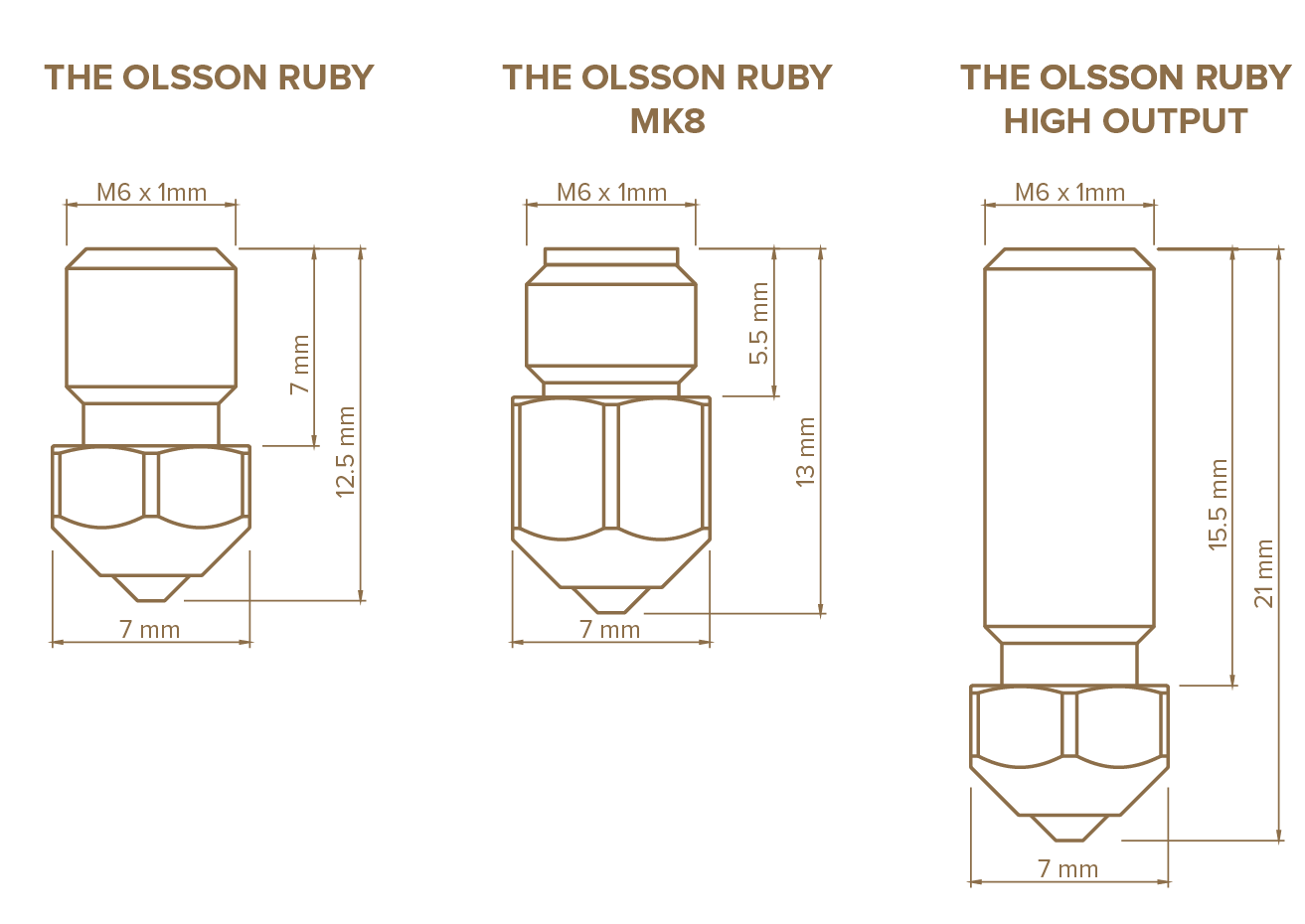

What are the dimensions of The Olsson ruby nozzle?

We have designed The Olsson Ruby to be compatible with the popular form factor of a nozzle with a 7mm long M6x1 external threading and 12.5mm overall length, like the range of Olsson Nozzles used on the Olsson Block for the Ultimaker 2, and on the E3D hotends.

The MK8 version features a shorter M6x1 threaded section at 5.5mm and a longer body for a overall length of 13mm.

The High Output version is designed to fit the hotends with a 15.5mm long M6x1 threaded section and 21mm overall length, like the E3D Volcano and Lulzbot MOARstruder ranges.

What future versions / sizes are The Olsson Ruby going to be made in?

We have several models/sizes planned, however doing test iterations with new ruby nozzle geometries is affected by quite long lead times due to the complex manufacturing process. It helps us to prioritize if you submit your interest in the model/size you are most interested in.

Smaller / Larger sizes – Submit interest

Other 3D printers and hot-ends – Submit interest

3D Printer manufacturer – submit interest for OEM opportunities

Compatibility List

The Olsson Ruby 1.75mm including high temp

Every printer with a E3D V4/V5/V6 1.75mm hotend or similar geometry, including:
Prusa Research i3 MK2/ MK2S / MK3 *6
E3D BigBox
gCreate gMax 1.5XT+
Felix Pro 2 * 4
Robo3D R2
Raise3D N1/N2 *5

The Olsson Ruby is NOT compatible with the Raise3D Pro2 series due to a change in the heat break geometry.

The Olsson Ruby 2.85mm

Ultimaker 2+
Ultimaker 2+ Extended
Ultimaker 2 with Olsson block upgrade
Ultimaker 2 Extended with Olsson block upgrade
Ultimaker Original *1 *2
Ultimaker Original+ *1 *2
Lulzbot TAZ 3 with hexagon hotend upgrade *2
Lulzbot TAZ 4 with hexagon hotend upgrade *2
Lulzbot TAZ 5
Lulzbot TAZ 6 *2 *3
3ntr A2 v2
3ntr A4 v3
Every printer with a E3D V4 3.0mm hotend *2
Every printer with a E3D V5 3.0mm hotend *2
Every printer with a E3D V6 3.0mm hotend *2

The Olsson Ruby 1.75mm HO

E3D 1.75mm Volcano hot-end

The Olsson Ruby 2.85mm HO

Lulzbot with MOAR-struder add-on
E3D 2.85mm Volcano hot-end

The Olsson Ruby 1.75mm MK8

Creality CR-10
Creality Ender 2
Creality Ender 3
Makerbot Replicator 2/2X
Makerbot Replicator Smart Extruder
SeeMeeCNC Artemis *4
SeeMeeCNC Rostock Max V3
Monoprice mini V1
Monoprice mini V2

Footnotes

*1 = You will need to adjust the fan shroud since the nozzle is shorter than the original nozzle.
*2 = You will need to mount it with the nozzle not placed against the front face of the heater block but against the heat break/isolator tube to create a seal.
*3 = Will require disabling of the automatic bed leveling since the ruby tip is not conductive.
*4 = Several testers reports success. Ruby is longer than stock nozzle so Z height needs to be adjusted.
*5 = Adjustment of z-stop required, also see notes on the revision of your Raise3D printer in the Instructions for use

*6 = Lower the heatsink and heatbreak half a turn while the block is hot to ensure a proper seal.
