The Olsson Ruby
A unique solution



The Olsson Ruby story

Anders is a research engineer at Uppsala University working on neutron particle experiments.

Anders invented The Olsson Ruby to be able to print neutron absorbing mounts and fixtures out of a mix of a thermoplastic and the extremely hard ceramic boron carbide.

Read the full story

Design

The Challenge

Creating a nozzle design that is abrasion resistant while retaining excellent thermal performance

Solution

A ruby gem stone combined with a well engineered, multi-part assembly for excellent heat conductivity



Highly wear resistant

During the community testing, we asked our testers to really abuse the ruby nozzle prototypes however they wanted to. This led to a number of insights that were implemented as improvements to the later revisions of the nozzle.

We encouraged printing with abrasive materials, and the ruby proved to be extremely resilient, not only when printing with mildly abrasive filaments like the Bronze/Brass/Copper filled ones, but also when it comes to printing with the highly abrasive carbon fiber composite filaments, like the Colorfabb XT-CF20 and Formfutura Carbonfil.

The image to the left is the front face of a ruby nozzle that has printed more than 8kg of carbon fiber filled materials. The lines made by the surface grinding of the ruby during production is still visible, also the thinnest edges are still perfectly sharp. The black specs you see on the inside is just residue from the carbon filled filament.

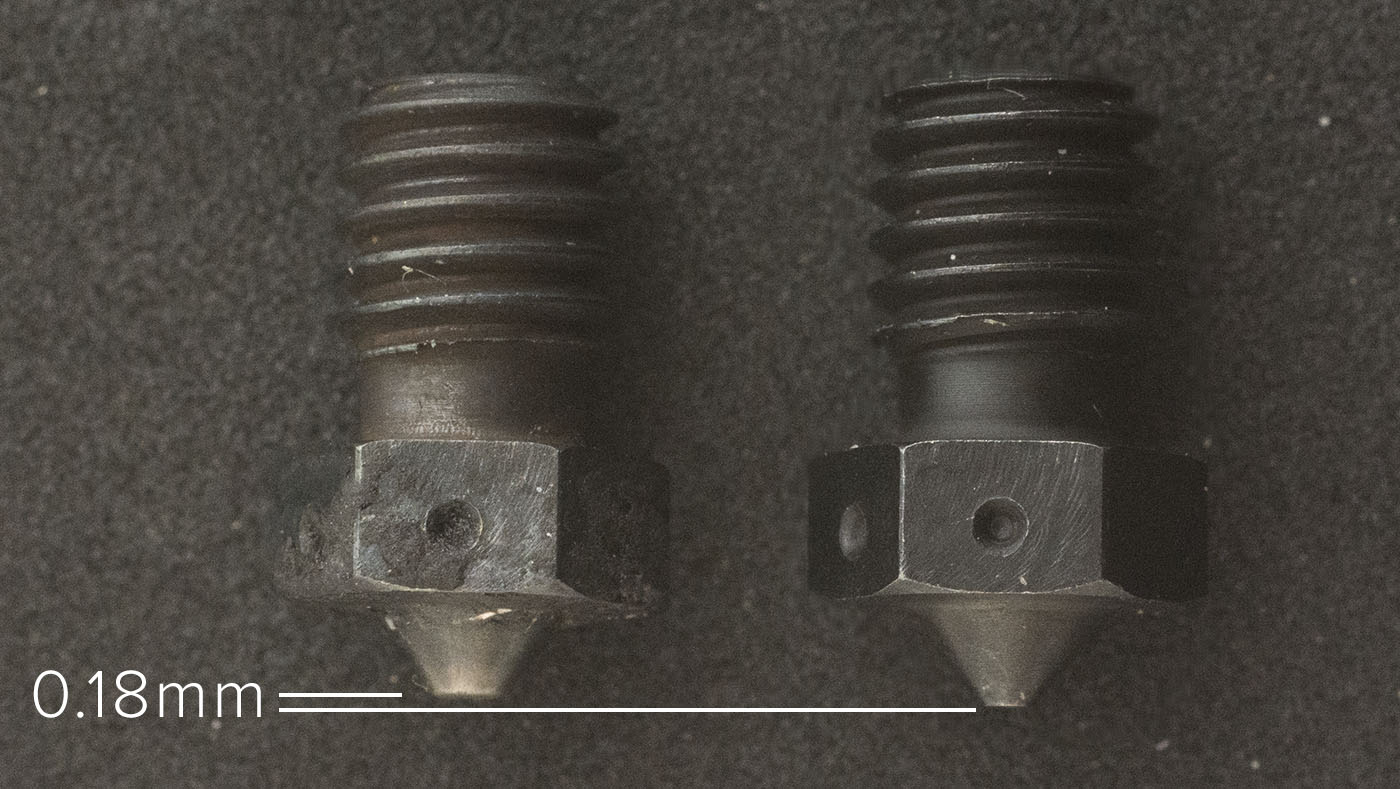

Wear resistance compared

Brass, 0.3kg carbon fiber filled filament printed.

Stainless steel, 1kg carbon fiber filled filament printed.

The Olsson Ruby, 8kg carbon fiber filled filament printed.
There is no visible wear under microscope.

Production &
Quality control



Production

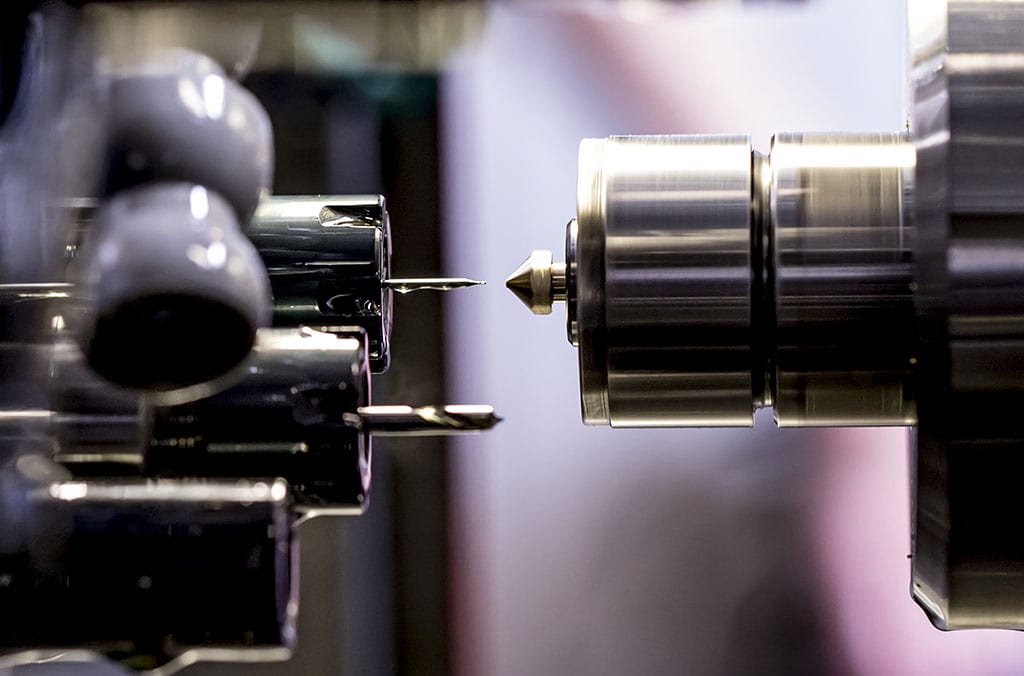

PRECISION MANUFACTURING

By combining high precision German machinery with Swedish workmanship, we can guarantee the highest quality in the Olsson Ruby.

METICULOUS ASSEMBLY

The mounting of the ruby to the brass parts is done with a custom made jig. This ensures that each nozzle is perfectly aligned and has a tight seal.

QUALITY CONTROL

RAW MATERIALS

Carefully selected raw materials from leading suppliers, including Switzerland, Sweden and the US, assure that quality can be kept consistently high.

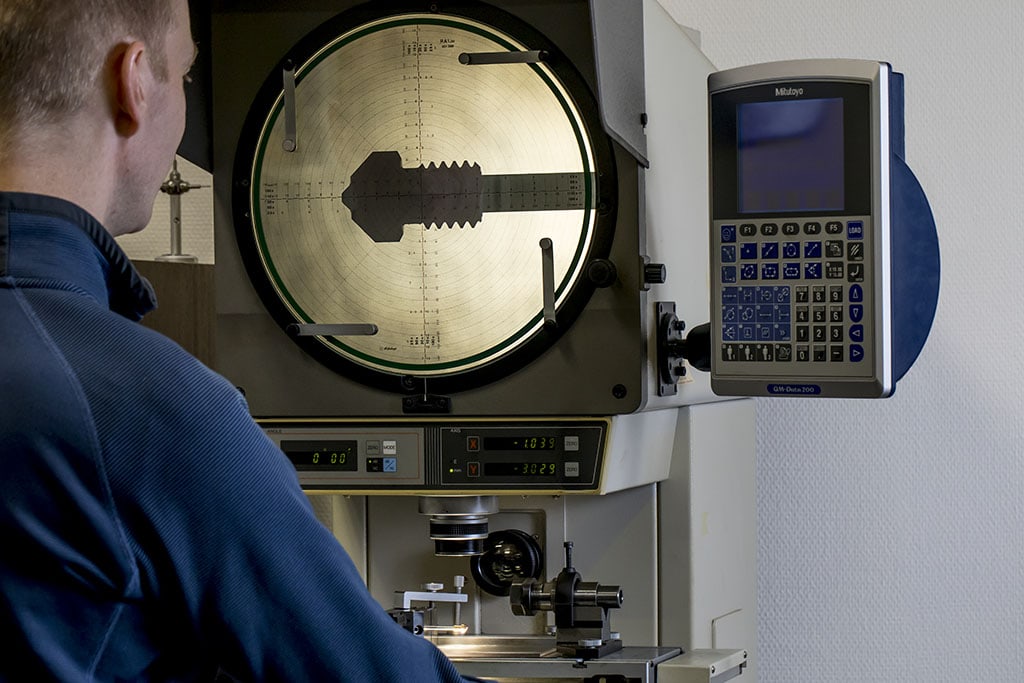

INSPECTION

The nozzles are continuously inspected with state of the art measuring equipment, including profile projectors and CMM technology.
